Photos

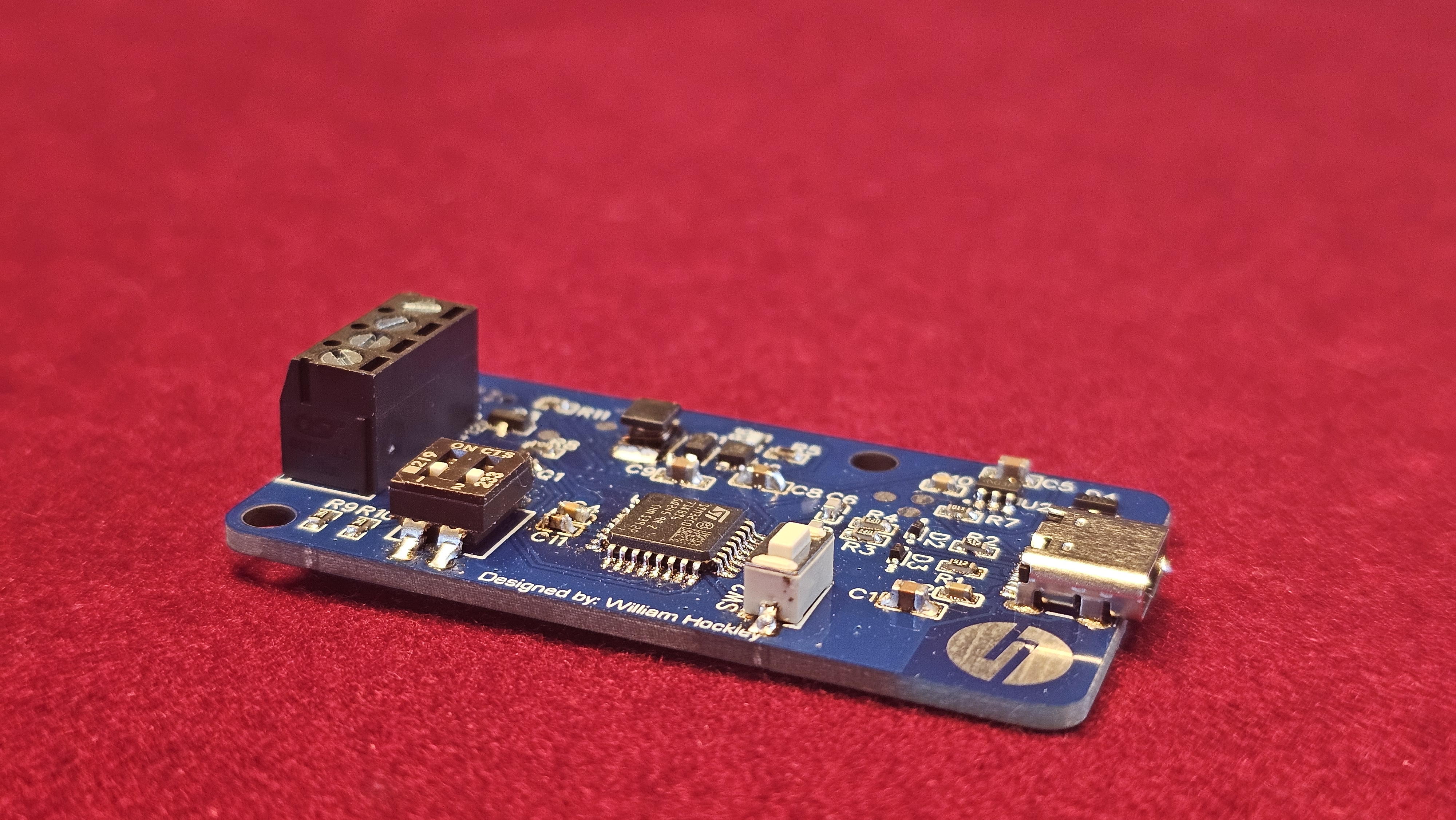

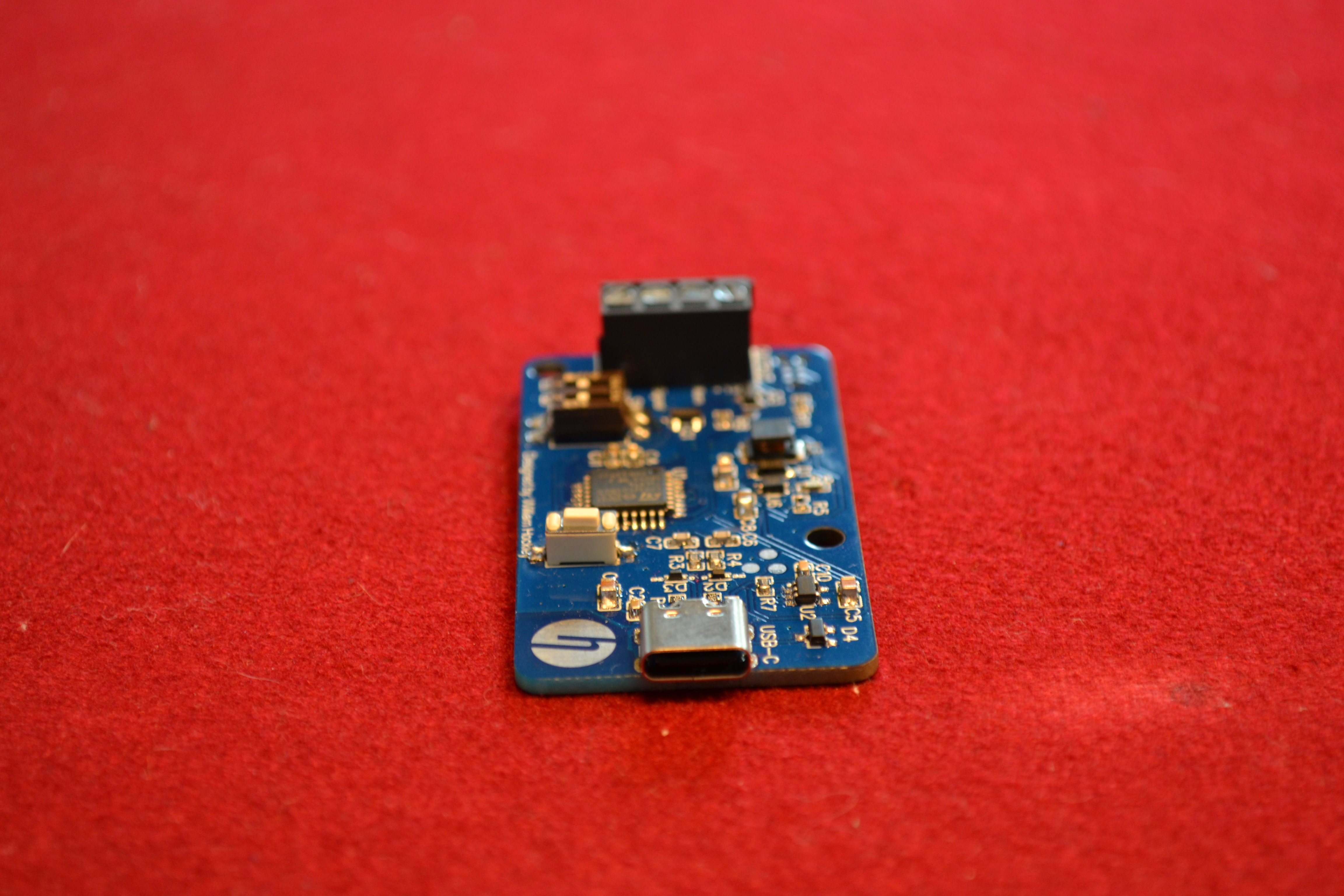

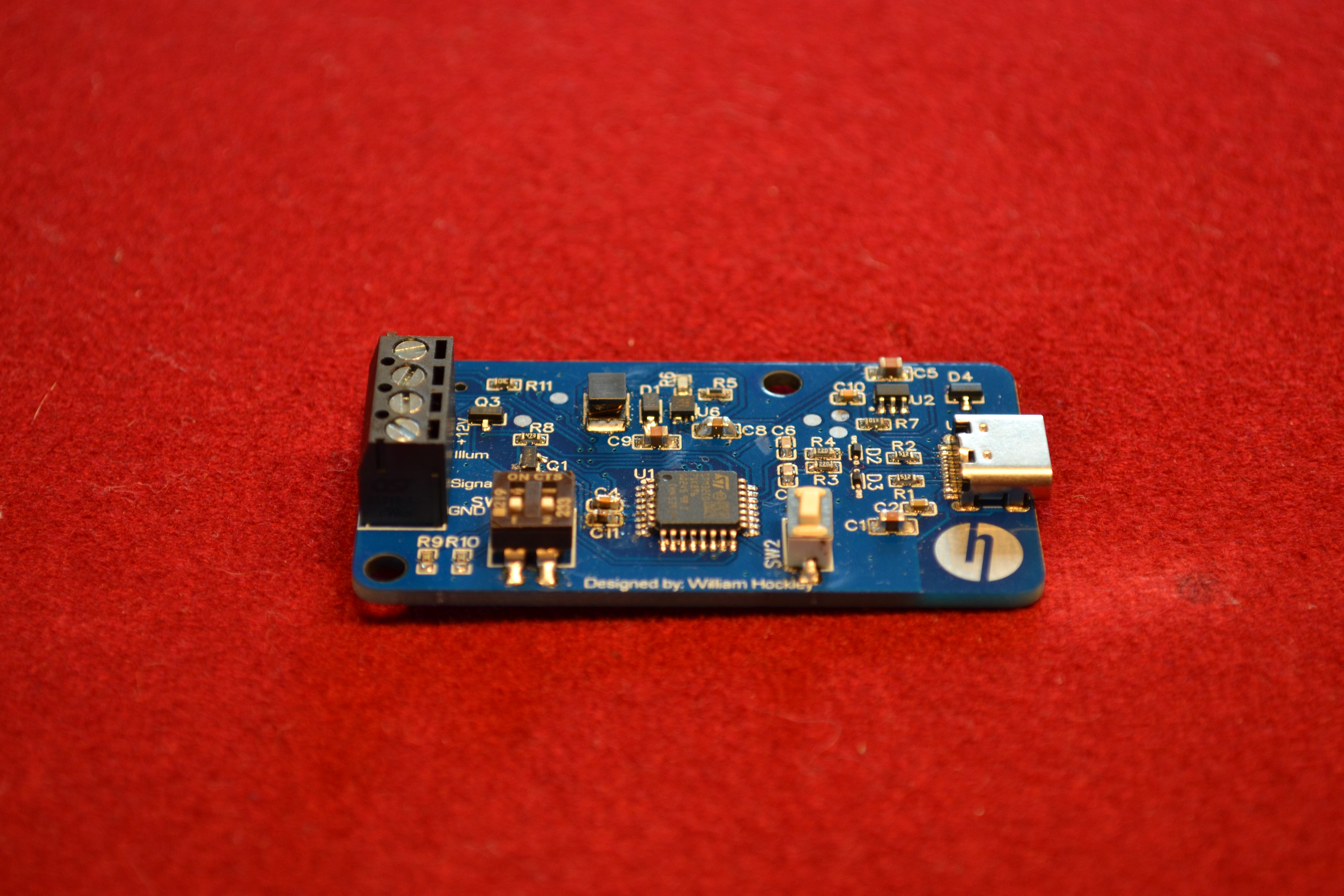

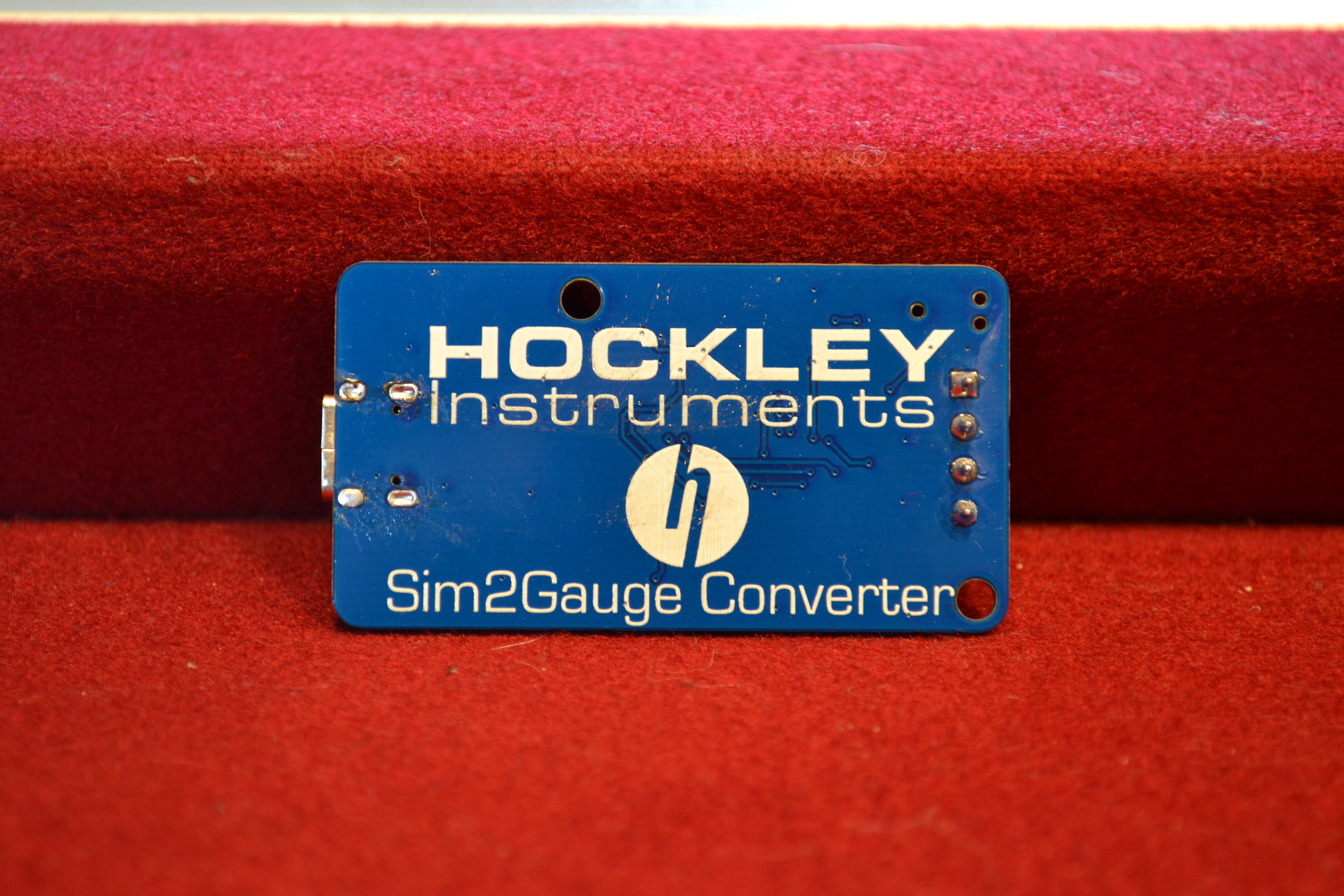

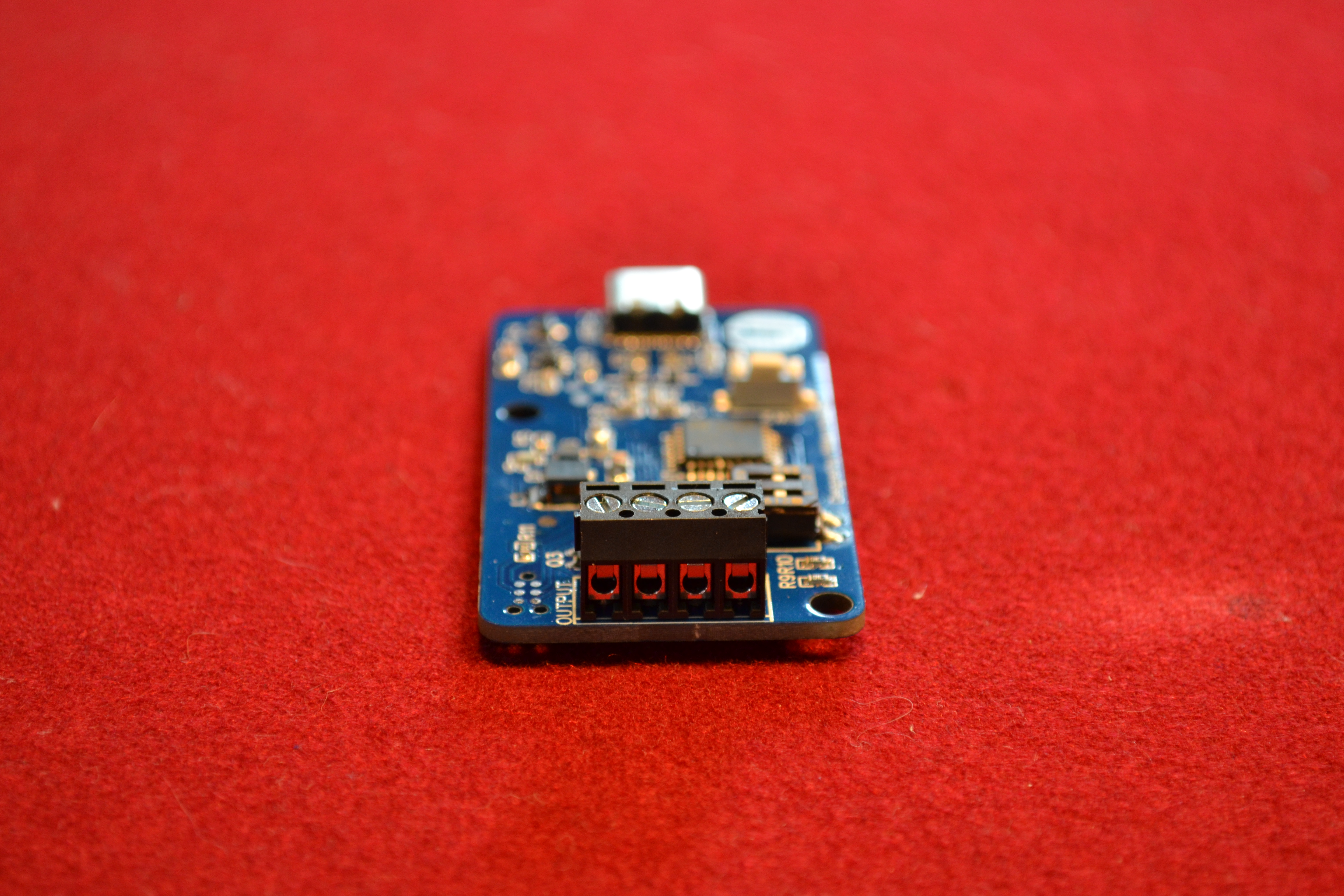

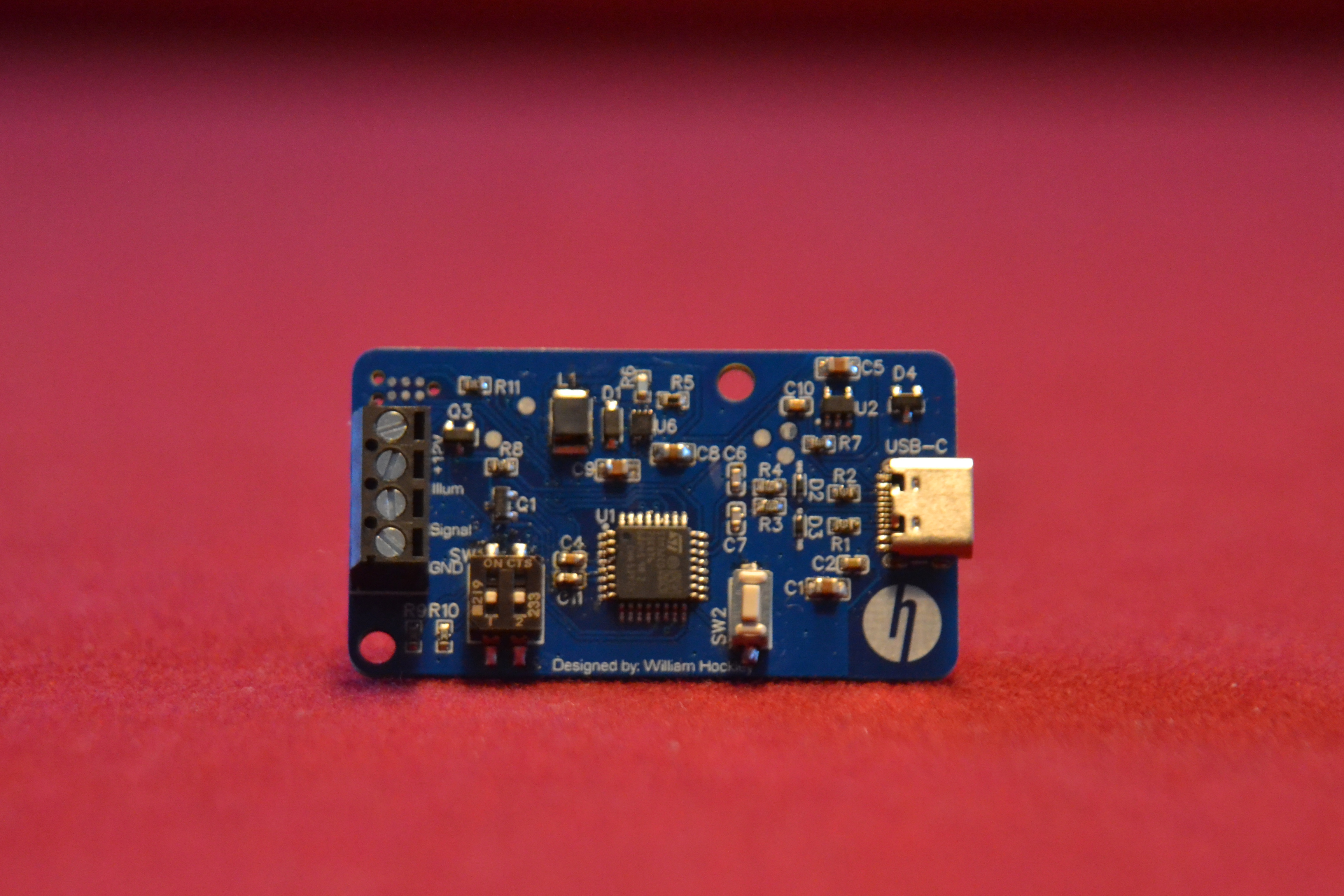

The board shown in these photos is a hand-built prototype. Production units will be PCB-assembled to a higher standard of finish and consistency.
sim2gauge
SimHub to tachometer adaptor for sim racing rigs
Specifications
- › Plug-and-play USB-C — receives RPM data from SimHub via USB-CDC
- › Drives analogue tachometers up to 800 Hz, 50% duty square wave output
- › Selectable 2/4/6/8-cylinder modes via on-board switches
- › Onboard boost converter for 12V gauges
- › Powered by your PC's USB port, no external power supply required
- › Soft-start illumination output for cold filament lamps
- › Designed in the UK, manufactured in China
Preorder — not in stock
This is a preorder. Your unit will ship from our first production batch approximately 1–2 months from order. You'll be charged now to reserve your place in the queue, and emailed the moment your unit dispatches.
Secure checkout · Stripe · UK + international
Ships from the UK. Customers outside the UK may be charged import VAT or duty by their local carrier on delivery — this is not included in the price.
Not ready to preorder?
Register your email and we'll let you know when production units are in stock — no payment required.
The sim2gauge is a small, plug and play board that lets you drive a real analogue tachometer from a PC racing game.
All supported games are listed on SimHub.
The Sim2Gauge receives data from SimHub over USB-CDC and outputs a clean, 50% duty cycle square wave scaled to your tachometer’s expected frequency range. Two on-board switches select the cylinder count, which sets the maximum output frequency:
| Cylinders | Max frequency |
|---|---|
| 2 | 200 Hz |
| 4 | 400 Hz |
| 6 | 600 Hz |
| 8 | 800 Hz |
Set the switches to match the cylinder count that your tachometer expects. Many aftermarket tachometers have their own switches inside for this, consult the product manual.
Maximum RPM is always 12000. An onboard boost converter and soft-start illumination output let you drive period-correct dashboard lighting safely from a single USB connection.
Status
sim2gauge is currently in testing & pre-production. Register your interest above or submit a preorder if you want to be first in line!
